King of the Grass
The Spartan King of the Grass stand on mowers, create the ultimate combination of performance, power, and looks in a commercial mower.
KG-XD & KG-PRO
A Minute Saved is a Dollar Earned
King of the Grass Stand On Mowers combine all the best features of a zero turn with a stand on unit to work better, faster, smoother, and with more comfort from its sit-behind seat. We believe, as do many who have test driven one of our prototypes, it is even more comfortable than a sit-down Z!
Standard Advantages
// 100-300 lb Soft Ride Operator Platform
// Multi-Function Key Pad with Soft Start
// Throttle Next to Parking Brake
// Magnetic Pin Height Adjustment
// Front & Rear Tie Down Locations
// Lean-in Bolster at Optimum Angle
// ⅝” Thick on Leading Edge of 7-Gauge Deck
// 4 Ag Bearings on Mower Spindle
// Rubber Anti-Scrape Mower Chute
// Full Beam LED Light - (KG-XD Only)
// Dual 6 Gallon Fuel Tanks
// Parker Hydraulic Drives
// 6” Deep Deck
// 7-Gauge XTF Deck
| KG-XD Engines | Deck Size | HP |
| Kawasaki FX801V 852cc | 54” | 25.5 hp |
| Kawasaki FX801V 852cc | 61” | 25.5 hp |
| Vanguard® Big Block EFI 993cc | 54” | 37 hp |
| Vanguard® Big Block EFI 993cc | 61” | 37 hp |
| KG-PRO Engines | Deck Size | HP |
| Kawasaki FT730V 726cc | 54” | 24 hp |
| Kawasaki FT730V 726cc | 61” | 24 hp |

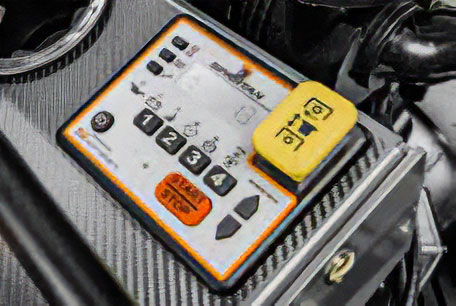

CONTROL PANEL
Has soft start PTO switch and diagnostics such as RPM, oil change, job timer and more.

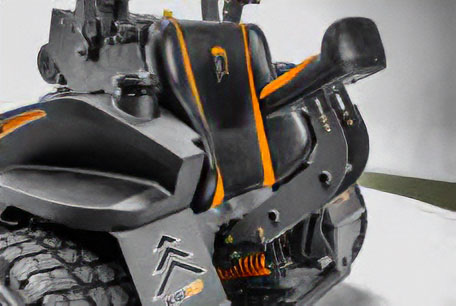

QUICK CHANGE SEAT
Seat easily changed out in less than a minute but provides hours of comfort.

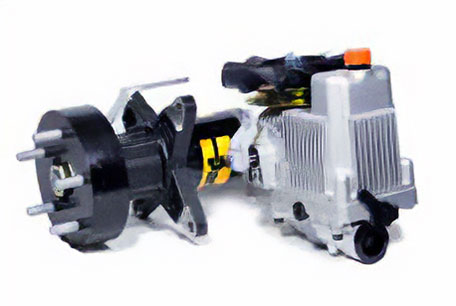

HYDRAULIC DRIVE 12CC & 10CC
Keep your ride smooth and trouble-free with Parker all Hyraulic drives (no gear reduction and up to 25% more efficient than gear reduction hydros).

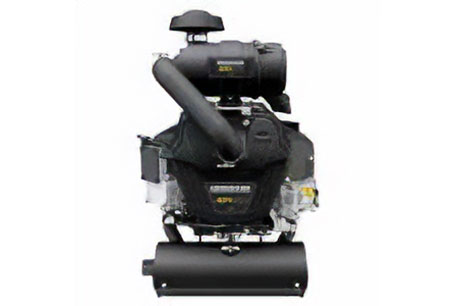

VANGUARD® BIG BLOCK EFI 37 HP
Vanguard Electronic Fuel Injection technology uses Engine Control Module which means improved starting at all temperatures, smooth performance at all elevations, quick load acceptance and reduced fuel consumption.

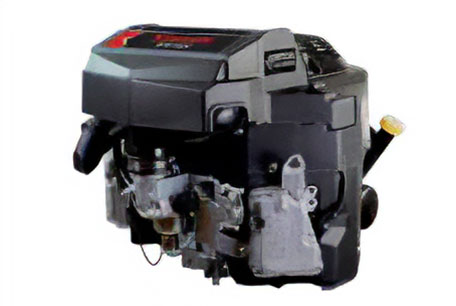

KAWASAKI FX801V 25.5 HP
The FX801V engine delivers serious power when there’s serious work to be done. Expect major strength from this top-of-the-line V-twin 4-cycle vertical shaft engine featuring cast-iron cylinder liners, a metal engine cover, and heavy duty shift-type starter.

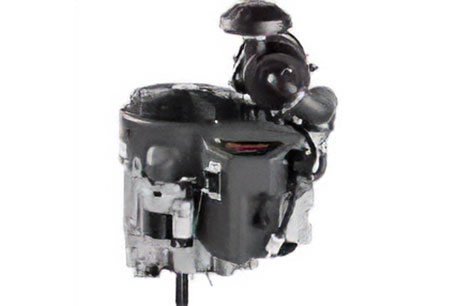

KAWASAKI FT730V 24 HP
Kawasaki FT Series engines are designed to make light work of the heaviest loads.
Summon the power with 39.7 pounds of torque and the response is instant.
Put grass and debris in its place with the all new Vortical air filtration system.
