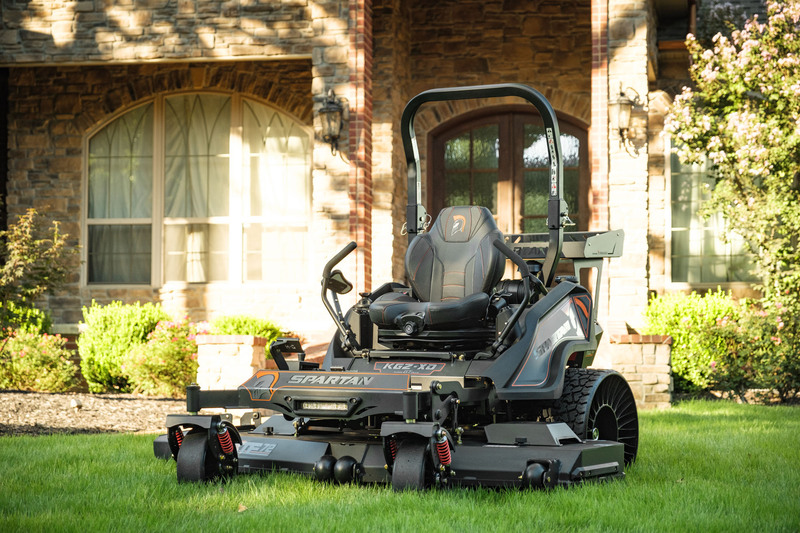

The King of the Grass Ride-on
Get ready to mow with the baddest mower on the market. The KGZ series will turn heads and drop jaws.
Even with its good looks, it is still a heavy-duty machine, perfect for the those who want to mow in comfort.
The KGZ-XD turned the zero turn market upside down. With a long list of of advantages and features, plus the one of a kind styling, there is nothing else that compares. Mow the fastest and with the most style with a KGZ-XD.
PARKER HTG 16CC
Transmissions, 4 Tweel Wheels, & 7-Gauge 6” Deep Decks
Standard Advantages
// 4 Michellin Tweels
// 4 Springed Suspension Forks
// Oversized Electric Clutch
// Multi-Function Key Pad with Soft Start
// Special Blackout Seat
// Ultra-Premium Dymetrol® Adjustable 3” Travel Seat
// TecsPak® Underseat
// Oil Guard System
// Magnetic Pin Height Adjustment

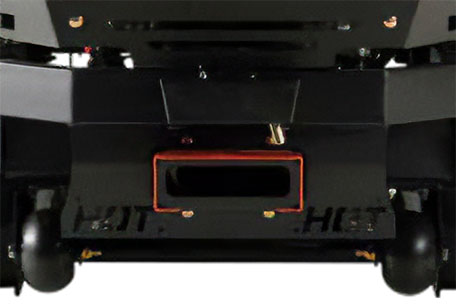

// 2” Reciever Hitch
// Dual Exhaust
// Adjustable Steering Arms
// 15 mph Top Speed
// 18,500 FPM Blade Tip Speed
// Folding ROPS
// 17 Gallon Fuel Tank (Dual 8 Gallon Tanks)
// LED Light Kit
// Spoiler Basket
| Engine | Deck Size |
|

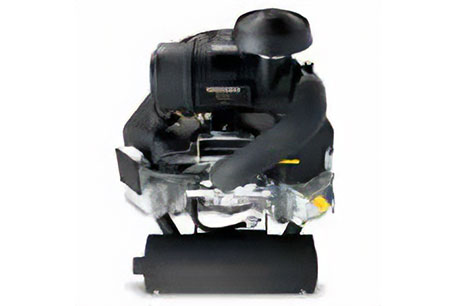

Vanguard® Big Block EFI w/Oil Guard 993cc |
61” |
|
Vanguard® Big Block EFI w/Oil Guard 993cc |
72” |
55+ LBS/FT Of Torque
18,500 FPM Blade Speed, Quieter Operation, 15 Mph, Reduced Fuel Usage, Increased Engine Life, And...
Conventional commercial zero turn mowers have always had a problem maintaining blade tip speed under high load (lush wet grass) conditions. The 18,500 FPM (feet per minute) tip speed drops as the engine slows down to meet the rising torque at lower RPMs. When the engine slows due to load from 3,600 with 18,500 tip speed to a maximum torque of around 2,800, the tip speed becomes too low to lift the grass, shear it off, and discharge it efficiently.
Big Block engines with CPUs that control EFI, E governors, and spark advance have made it possible to maintain 18,500 FPM tip speed by governing the engine at max torque output. Spartan has governed these Big Blocks at 2,800 RPM so that when the CPU senses increased load, it simultaneously has the electronic governor open the throttle, adjust fuel flow with EFI, and control the spark advance just like your new car or truck.
The result... 18,500 FPM blade tip speed is achieved under almost ALL CONDITIONS.
Yes, we give up high end horsepower, but the blade tip speed is maintained.
Both engine pully diameters have been increased so that at 2,800 RPM the blade tip speed remains at 18,500 and the pump speed allows for 15 MPH top speed. The KGZ-XD is our fastest zero turn yet. Try it to believe it.
The KGZ-XD has 55+ lbs/ft of torque to maintain 18,500 FPM for a pristine cut under most conditions. What else do you get? Instant torque, quieter operation, reduced fuel usage, increased engine life, and so much more!

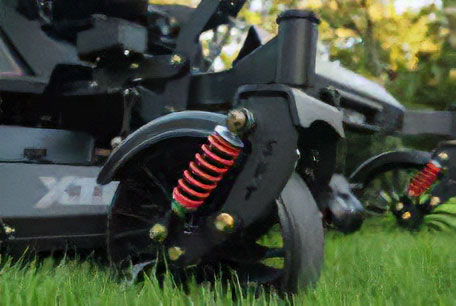

SUSPENSION FORKS
Four shocked front spring suspension with multi adjustment cr eate the smoothest ride possible.
OIL GUARD SYSTEM
The Vanguard Oil Guard system keeps oil cooler and allows 500 hours between oil changes instead of the standard 100.

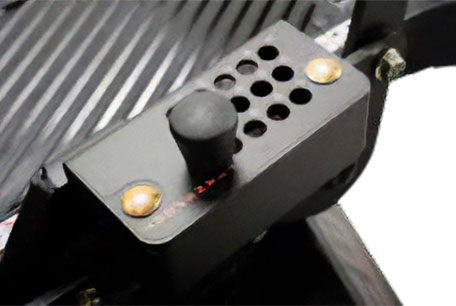

MAGNETIC PIN SYSTEM
The magnetic mower height adjustment pin creates a quick access, easy to use system that gives you the perfect height cut every time.
DUAL EXHAUST
With dual exhaust the KGZ-XD sounds like no other mower on the mar ket. Experience a sound that is reminiscent of the muscle car era.

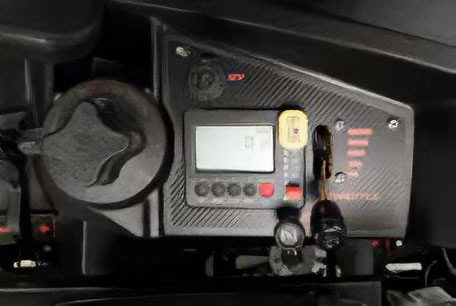

NEXCON KEYPAD
With features of our standard key pad plus fuel gauge and both key fob or code start, this new feature elevates the KGZ-XD above other mowers even more.

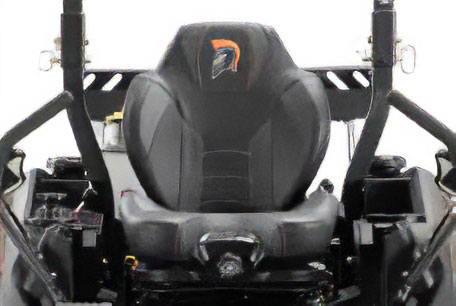

SPECIAL BLACKOUT SEAT
Ride in style with the 360° seat plate, TecksPak®, 3” adjustable travel seat, and Dymetrol® cushion. There isn’t a more comfortable ride.
